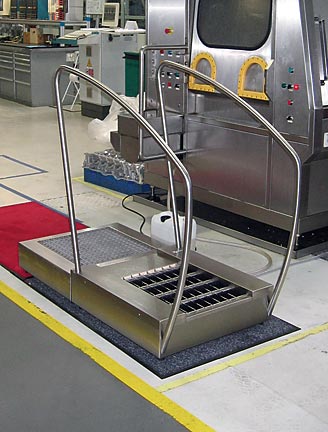

Heute Solamat 500

These high quality industry devices are made entirely from stainless steel. They should be used as a forced pathway which all users have to pass. Before entering the actual cleaning area the user will be recognised by an optical sensor located in the hand rail. This sensor automatically starts the counter-rotating wheel brushes and switches the machine off when the user has left the device.

Solamat 500 is a wet cleaning unit and requires a ½" connection for water input. When the machine starts, a solenoid valve opens and feeds water to the bin and brushes. A separate hose pump can add cleaning fluids or disinfectants while a regulator is responsible for a constant level. The wheel brushes take up water plus optional cleaning media and transport both towards the soles to be cleaned. Effluent water is drained away from the machine’s bin and should be fed into drainage. A drip-off grate behind the brushing area minimizes further water transportation. With a 1" drain cock dirty water can be let off

Drive:
belt drive and strong motor

RPM of the brushes:
via frequency inverter continuously variable

Dimension inclusive drip-off grate:
70cm x 150cm x 18,5/128cm
width x depth x height

Dimension of brush area:
40cm x 50cm x 1cm
width x depth x height

Brushes:
nylon fiber: 0,20mm,
black, smoothly waved

Weight:
107kg net, 123kg gross

Start/Stop automatism:
via optical sensor

Power supply:
230 volt (110 volt optionally)

Motor:
0,18kW, 50Hz, Iso-Cl F, IP 55

Specifics:
½" water supply with solenoid valve.
Pressure can be regulated
from 0 – 1,6bar. Hose pump with
0,15 – 4,5l / hour water
throughput. Drain cock with 1" exit
