Heute CleanGate®

Until now, attractive entrance areas and offices of high value are exposed to excessive wear-and-tear from high usage, which leads to premature wear-out.

The resulting costs for cleaning, maintenance and renewal can be reduced considerably by using the active sole cleaning unit, CleanGate®. This way, dirtying carpets or floors by visitors and employees can be avoided.

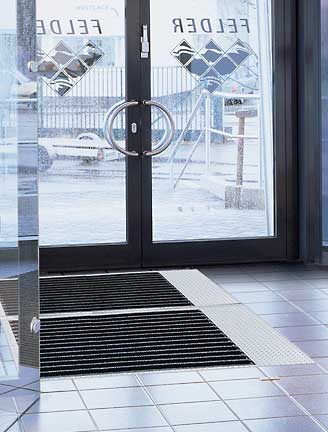

The visual appearance of the CleanGate® is similar to a conventional doormat that is installed in the floor. However, the efficiency of bristles working in opposite directions is much higher than that of conventional mats. We have produced similar units for large scale industries for many years now, where moving brushes or mats reliably prevent staining and scratching of adjacent floor covering.

CleanGate® is particularly suitable for those areas where many people are passing by – e.g. shopping centers, airports, administration buildings or offices. Visitors, customers and guests will have their soles cleaned automatically when crossing the unit. The patented bristle drive with bars moving in opposite directions is guaranteed to work, despite the amount of dirt that is brushed off.

Pit Dimension:
143 cm x 120 cm x 32 cm
width x length x depth

Max. loading capacity:
300 kg concentrated load,
unlimited number of people

Cleaning area:
98 cm x 108 cm
width x length

Net-Weight:
300 kg

Brush bars:
approx. 280 movements / min

Power supply:
400 volt, 16 A,
other voltages optionally,
three-phase current
